A rescue line thrower gets a rope to a person in water faster than anyone can swim. The right choice depends on your typical rescue distance, launch position (shore, bridge or boat), and whether your team has trained operators. This guide covers four types — manual throw bags, pneumatic launchers, professional rescue launchers and project-configured kits — with real specs, operation steps and maintenance advice.

Quick range guide: Manual throw bags cover up to 30m and need no power. Pneumatic launchers reach 80–180m but need compressed air and trained operators. Professional launchers reach 150–230m for fire and coast guard teams. Match the type to your distance first, then check rope, spares and transport.

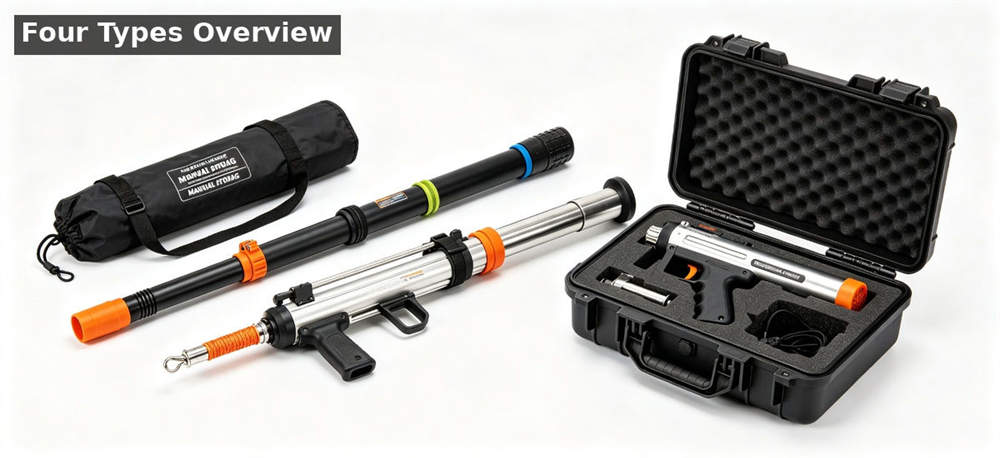

Four Types of Rescue Line Throwers

Most procurement needs fall into one of four categories. Start with your maximum rescue distance, then narrow by launch position and operator training.

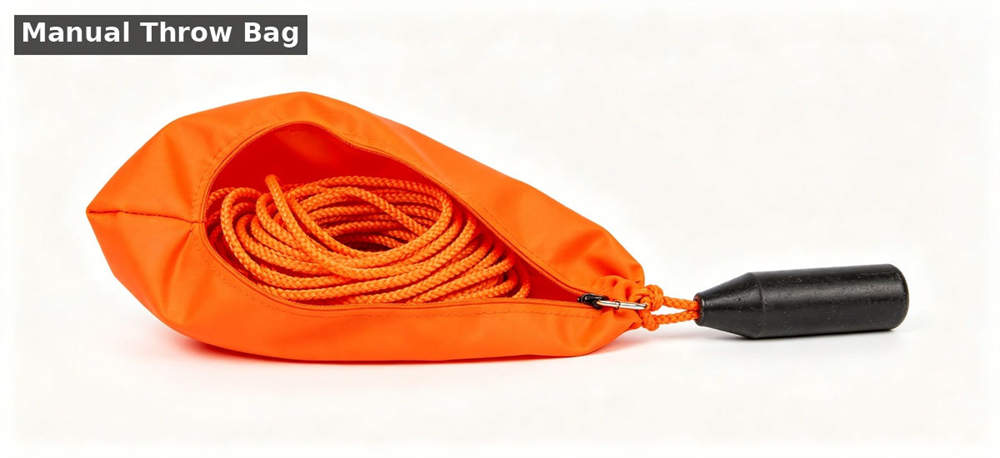

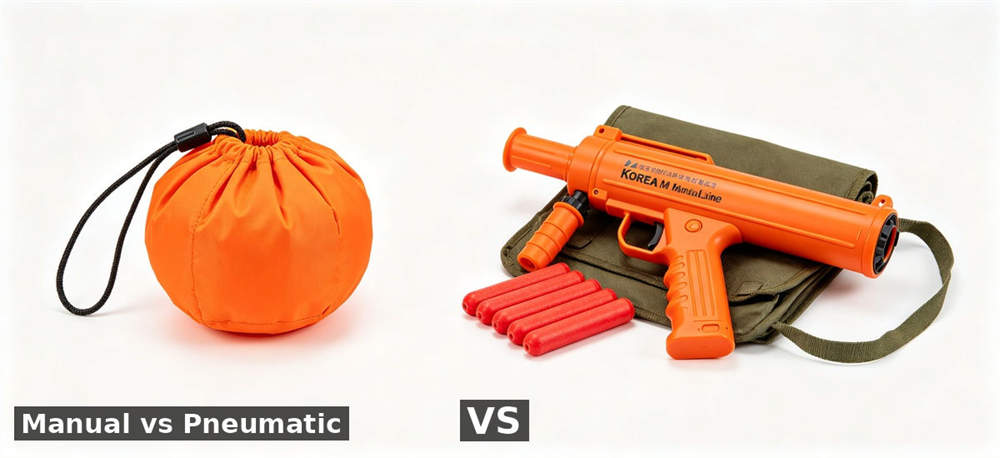

Manual Throw Bags

The simplest and most affordable type. A floating rope packed into a small bag with a weighted end. The operator throws by hand and the rope pays out behind it.

• Typical range: 20–30m (trained operator), 15–20m (novice)
• Rope: 6–8mm polypropylene or polyethylene floating line, 15–30m
• Weight: 400–800g including rope
• Power: None — human force only
• Best for: Shore rescue, kayakers, rafting guides, lifeguards, short boat-to-boat

• Advantages: No training certification, no pressure parts, zero maintenance, very low cost, always ready
• Limitations: Range depends entirely on operator strength and skill, not for long-distance or open water

✅ For water-rescue teams and emergency programs sourcing equipment in volume, explore bulk water rescue equipment | Water Rescue Equipment for Bulk Procurement to compare lifesaving, water protection, and field-operation equipment.

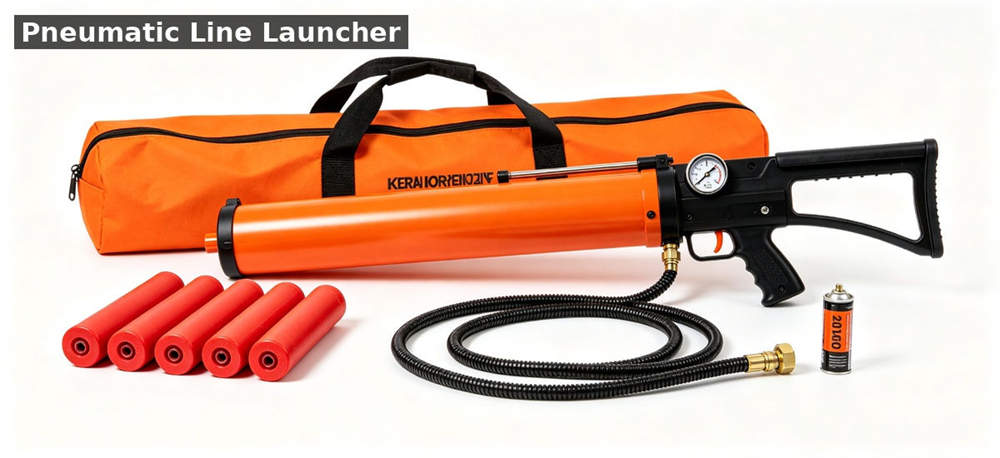

Pneumatic Line Launchers

Compressed-air powered launchers that fire a projectile trailing a floating rope. The most common type for marine and fire-rescue use.

• Typical range: 80–120m on water, 100–180m on land (45° angle, no wind)
• Working pressure: 2–5MPa depending on model
• Rope: 6–8mm diameter, 100–200m, high-strength polyethylene or polypropylene
• Projectile options: Rescue buoy (floating), grappling hook, standard weighted head
• Weight: 5–8kg complete with cylinder
• Best for: Ship-to-shore, boat-to-boat, fire department water rescue, coast guard

• Advantages: Consistent range regardless of operator strength, fast reload (1–2 min), multiple projectile types
• Limitations: Requires operator training, cylinder needs periodic inspection, pressure component transport may need special documentation

Professional Rescue Launchers

Heavy-duty launchers built for professional fire, coast guard and military rescue teams. Aluminium-alloy body, higher pressure, longer barrel and more durable construction.

• Typical range: 100–150m on water, 150–230m on land
• Body material: Aluminium alloy for corrosion resistance
• Rope: 8–10mm diameter high-strength rescue rope, 150–250m
• Weight: 8–12kg
• Best for: Professional fire departments, coast guard, military rescue, offshore platform
• Advantages: Longest range, most durable, consistent accuracy, designed for repeated heavy use
• Limitations: Highest cost, requires certified operator training, heavier to carry, more maintenance

✅ For firefighting and personal-escape programs sourcing safety kits, visit bulk fire escape rope kits | Firefighter PASS Device, Personal Safety Equipment and Emergency Escape Rope Kits to compare PASS devices, personal safety equipment, and escape-rope kits.

Project-Configured Complete Kits

Built to a specific task specification — a combination of launcher, multiple projectile types, spare ropes, tools, pressure components and a carrying case.

• Includes: Launcher body, 2–3 projectile types, 1–2 spare ropes, refill cylinder or pump, tool kit, spare seals, manual, hard carrying case
• Best for: Government tenders, fire department equipping, disaster-relief organisations, ready-to-deploy complete sets
• Advantages: Everything in one case, no risk of missing accessories, configured for your exact task

• Limitations: Requires clear task specification before ordering, longer lead time for custom configuration

Side-by-Side Comparison

How to Choose the Right Type

Answer these three questions before requesting a quotation:

Quick selection guide:
• Maximum rescue distance under 30m, shore-based → Manual Throw Bag
• Distance 30–150m, boat or shore, have trained operators → Pneumatic Launcher
• Distance over 150m, professional fire/coast guard team → Professional Rescue Launcher
• Government tender, need ready-to-deploy complete set → Project-Configured Kit
• Both short and long distance needed → Manual bag + Pneumatic launcher combination

• Unsure of exact distance → Start with pneumatic (covers most scenarios)

Key Selection Factors

• Maximum rescue distance: Measure your typical and worst-case rescue distance. Add 20% safety margin — range figures are tested in ideal conditions, real wind and current reduce effective range.

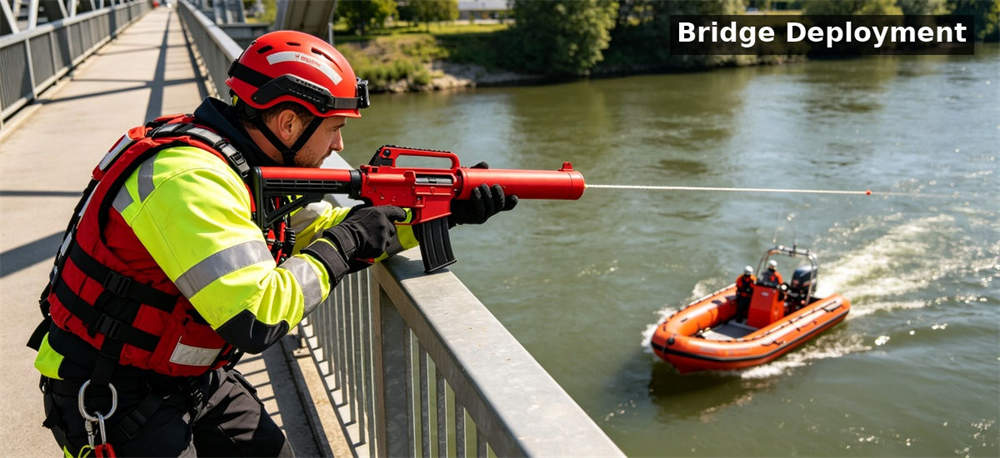

• Launch position: Shore, bridge, boat or helicopter? Boat-mounted launchers need secure mounting points; bridge launch needs higher angle capability.
• Operator availability: Pneumatic and professional launchers need trained operators. If your team has none, either start with manual bags or include training in the procurement.

• Projectile types needed: Rescue buoy for person-in-water, grappling hook for vessel-to-vessel or building access, standard head for general line transfer.
• Transport and storage: Pressure cylinders have transport restrictions. Manual throw bags have none. Consider your storage environment for rope and seal longevity.
• Spare parts availability: O-rings, seals, ropes and projectiles are consumable. Confirm spares are available for the model you choose.

Not sure which type fits your rescue scenario? Send us your task distance and launch position — we'll recommend a configuration within 24 hours.

Related Water Rescue Categories

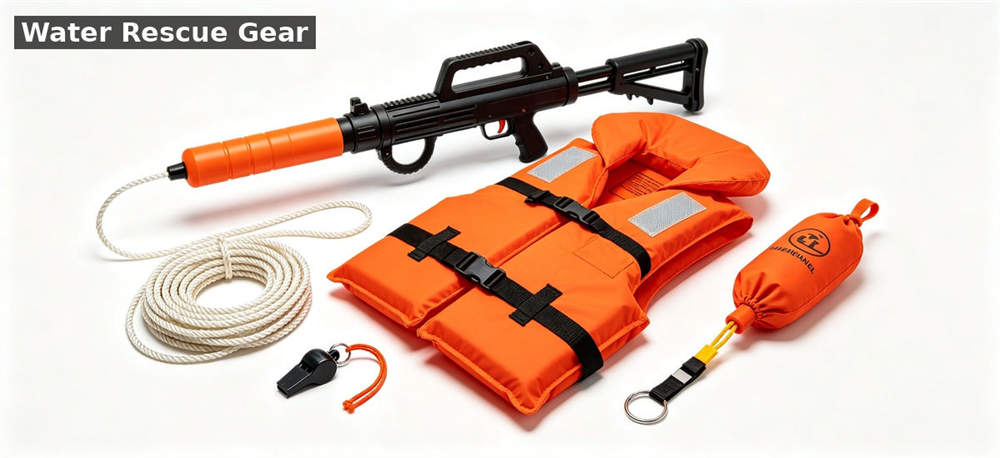

Line throwers work as part of a full water rescue system. Your team also needs flotation, protective clothing and footwear.

Pneumatic Rescue Line Throwers

Flood Rescue Life Jackets

Complete Water Rescue Equipment

Flood Disaster Relief Products

Fire & Rescue Equipment

5 Factors That Affect Throwing Range

The range printed in a catalogue is the best-case result. Real rescue range depends on these five factors — understand them before you select a model based on numbers alone.

1. Wind speed and direction: A 10km/h crosswind can reduce effective range by 15–25%. Headwinds reduce range further. Always test in your actual operating conditions, not just in a factory courtyard.
2. Launch angle: Maximum range is achieved at 35–45° for most pneumatic launchers. Too low (under 20°) and the projectile drops short; too high (over 50°) and it loses forward momentum.

3.Projectile weight: Heavier projectiles carry further in wind but require more pressure. Lighter projectiles are easier to deflect. Match the projectile weight to your typical wind conditions.

4.Rope diameter and drag: Thicker ropes (8–10mm) are stronger but create more air drag, reducing range by 10–15% compared to 6mm rope. Thinner ropes go further but may not be strong enough for heavy loads.

5.Working pressure: Higher pressure = longer range, but also more wear on seals and higher transport classification. A 5MPa launcher may reach 180m, while the same body at 2MPa reaches 100m. Confirm the pressure your cylinder can legally hold and transport.

Practical tip: When comparing two launchers by range, always check the test conditions (pressure, angle, wind, projectile type). A "200m range" claim at 5MPa with no wind is not the same as a "120m range" at 3MPa in 15km/h wind.

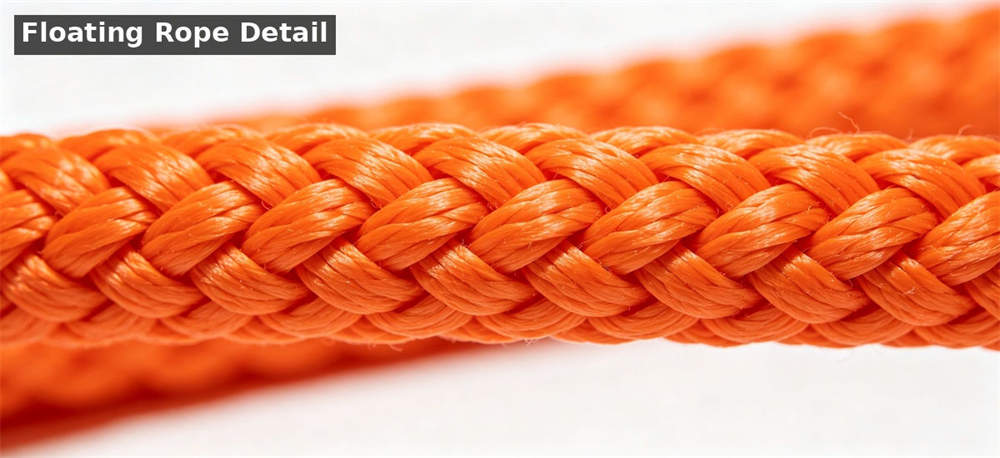

Rescue Rope Selection Guide

The rope is the part that actually saves a life — the launcher just delivers it. Choosing the wrong rope means the launcher works perfectly but the line fails when it matters.

Rope Materials Compared

How to Choose Rope Diameter

• 6mm: Longest range (lowest air drag), best for manual throw bags and short-distance pneumatic. Minimum strength for single-person rescue.
• 8mm: Balanced choice for most pneumatic launchers. Good range + enough strength for two-person or loaded rescue. Most common professional choice.
• 10mm: Highest strength, shortest range. For professional launchers doing heavy vessel-to-vessel or multi-person rescue.

Important: Always confirm the rope is specified as floating for water rescue. A sinking rope is worse than useless — it can pull a person under water. Nylon and polyester ropes sink and should not be used for water rescue line throwers.

Pneumatic Launcher — Operation Steps

Follow these steps for safe and consistent operation. Exact procedures vary by model — always follow the manufacturer's manual for your specific unit.

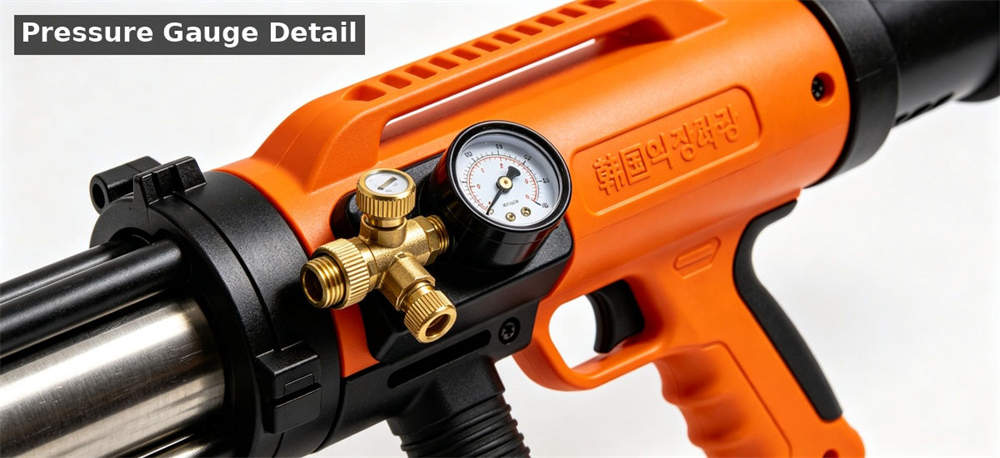

1. Check the pressure gauge. Confirm the cylinder is charged to the recommended working pressure (typically 2–5MPa). Do not exceed the maximum rated pressure.
2. Select and load the projectile. Choose the correct projectile for the task (rescue buoy for water, grappling hook for vessel access). Insert into the barrel and ensure it is seated correctly.

3.Prepare the rope. Lay the rope out straight behind the launcher in a loose figure-8 pattern. Do not coil it tightly — tangling during launch is the most common cause of failed shots.

4.Aim and fire. Aim at a 30–45° angle for maximum range. Account for wind drift. Fire with a smooth, steady trigger pull.

5.Recover the rope. Once the projectile reaches the target, the person on the receiving end ties off or uses the line. Do not pull the rope back while it is under load from the projectile.

6.Reload. Retrieve the projectile, check it for damage, repack the rope, recharge the cylinder if needed, and the unit is ready for the next shot.

Safety: Never fire at a person. Always check the backblast area behind the launcher — compressed air release can injure bystanders within 2 metres. Keep fingers away from the barrel opening. Wear eye protection during operation. Pressure cylinders must be inspected and tested at the intervals specified by the manufacturer and local regulations.

Safe Operation Rules

Pneumatic and professional launchers are pressurised equipment firing projectiles at high speed. These rules apply every time, no exceptions.

• Backblast zone: Keep all personnel at least 2 metres behind the launcher during firing. The rear air release can cause ear injury or knock people off balance.
• Minimum firing distance: Do not fire at targets closer than 10 metres — the projectile has not yet slowed and can cause serious injury.

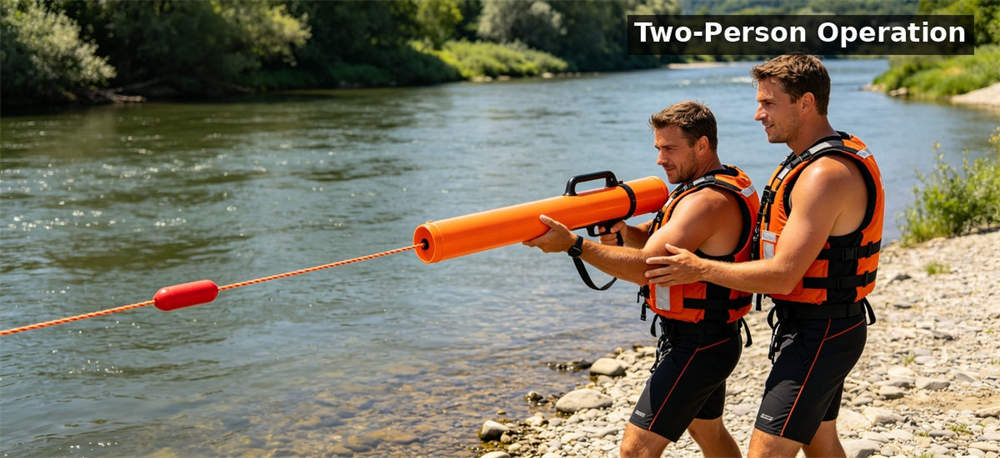

• Personnel positioning: The operator stands at the rear, the rope handler stands to the side (never in front or directly behind). No one walks in front of a loaded launcher.
• Weather limits: Do not operate in wind over 30km/h (projectile accuracy becomes unreliable). Do not operate in thunderstorms (metal launcher body attracts lightning).
• Pressure check before every shot: A cylinder that has lost pressure will fire weakly and the projectile may drop short, creating a false sense of range.
• Never modify the pressure valve: Tampering with the pressure release valve to increase range is dangerous and voids all safety certifications.

✅ Browse a full portfolio of wholesale emergency supplies and emergency medical kits wholesale for disaster‑relief missions, workplace safety, educational institutions and humanitarian procurement. This aggregation page consolidates comprehensive wholesale medical supplies and emergency medical supplies, supporting B2B bulk orders and project‑based sourcing. Click to view product specs, MOQ details and institutional project quotation options.

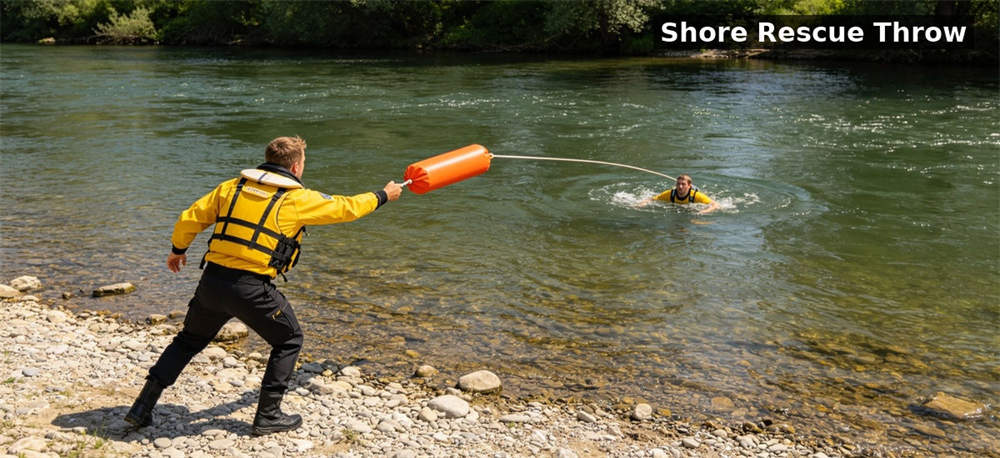

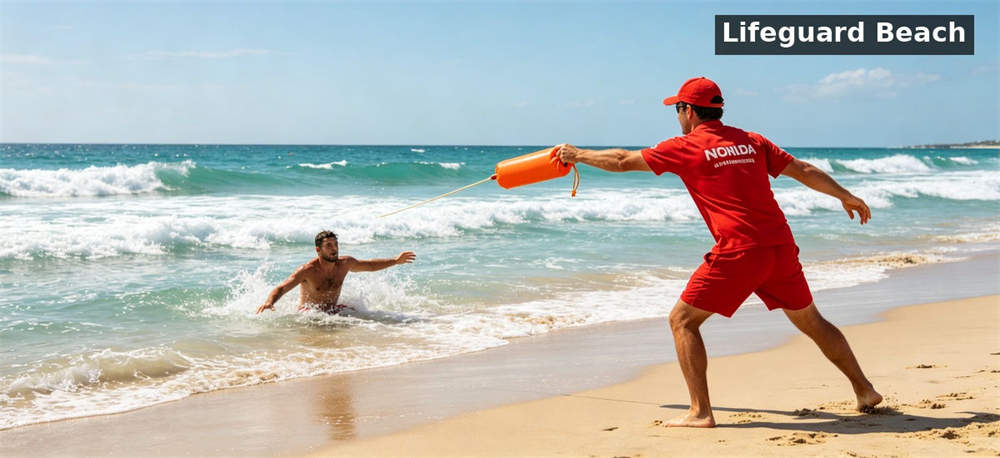

Manual Throw Bag — Operation

1. Hold the bag correctly. Grip the bag by the weighted end, with the rope paying out from the top of the bag.
2. Keep a loose loop. Hold 30–50cm of rope loosely in your other hand to prevent the rope from catching on your feet or equipment.
3. Throw with a smooth overhand motion. Aim slightly above the target — the bag will drop as it flies. Throw past the person so the rope falls across their reach.

4. Let the rope pay out. Do not grip the rope tightly — it must flow freely from the bag.

5.After the throw. The person in the water grabs the rope and you pull them to safety or anchor the line.

6.Repack immediately. After use, repack the rope carefully (do not stuff it randomly) so it is ready for the next throw. A poorly packed bag will tangle mid-throw.

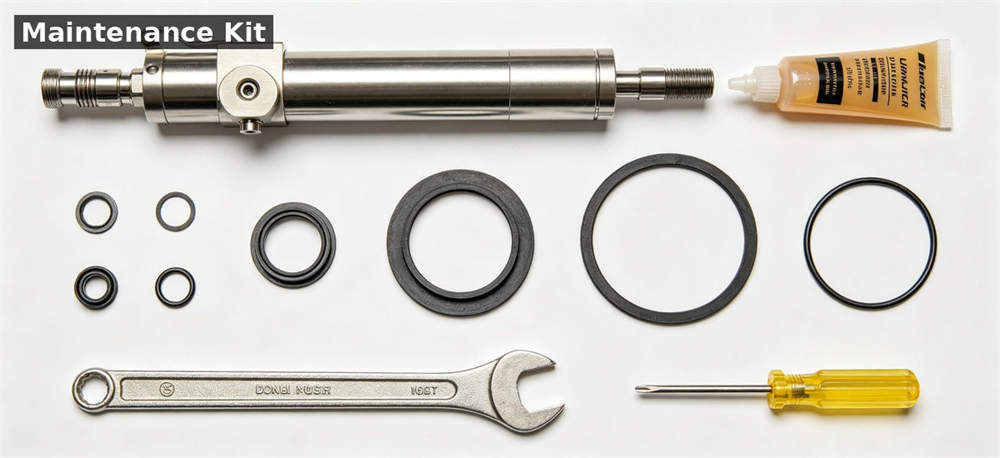

Maintenance and Inspection

Pneumatic and Professional Launchers

• O-rings and seals: Replace every 50 launches or every 6 months, whichever comes first. A leaking seal causes pressure loss and reduced range.
• Pressure cylinder: Inspect externally for dents, corrosion or damage before each use. Have cylinders hydrostatically tested at the interval required by local regulations (typically every 2–5 years depending on cylinder type).
• Pressure gauge: Check calibration annually. A faulty gauge can lead to over- or under-pressurisation.
• Barrel: Clean after each use. Remove salt residue with fresh water. Lubricate the barrel interior with manufacturer-recommended lubricant.

• Rope: Inspect for cuts, fraying or UV damage before each use. Replace if more than 10% of strands are broken in any 10cm section, or if the rope has been under shock load.
• Projectiles: Check for cracks or deformation. Replace damaged projectiles — a cracked projectile can break apart during launch.

Manual Throw Bags

• Rope inspection: Check for fraying, cuts or UV discolouration before each use. Floating ropes lose buoyancy over time — test floatation annually by dropping a 1-metre section in water for 5 minutes.
• Bag condition: Check for tears in the bag fabric. Replace the bag if stitching is failing.

• Repacking: Always repack after use, never leave the rope wet in the bag — mildew weakens the fibres.
• Replacement cycle: Replace the rope every 2–3 years or after any major rescue where the rope was under load.

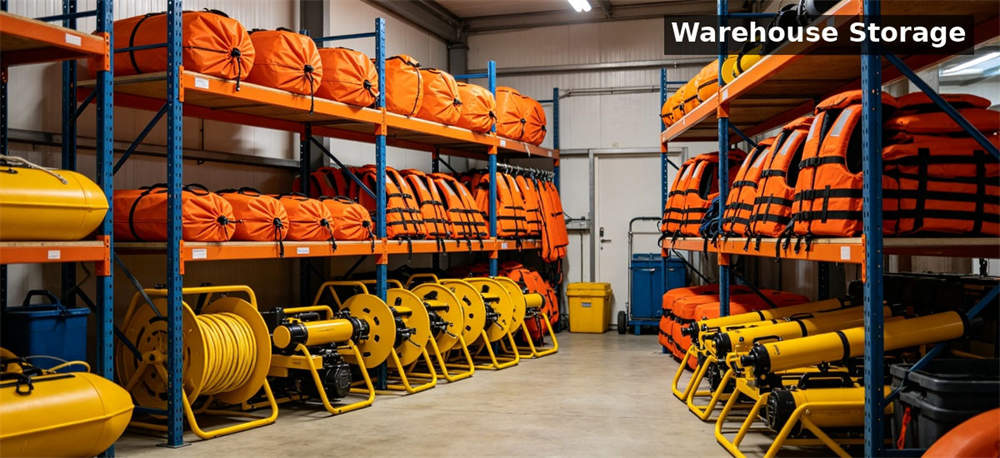

Storage Rules

• Store in a cool, dry place away from direct sunlight and heat sources.
• Do not store pressure cylinders at temperatures above 50°C or below -20°C.
• Keep ropes clean and dry before storage.

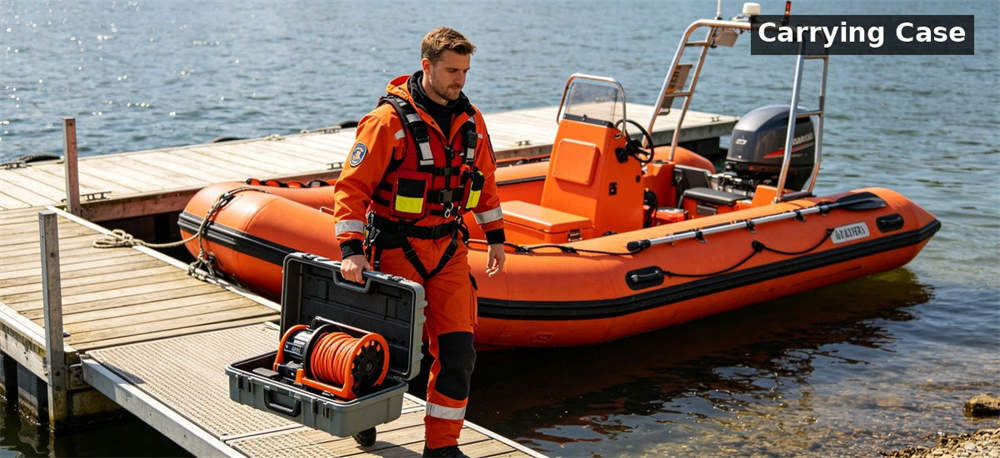

• Store launchers in their carrying cases to protect seals and gauges.
• Record each inspection and maintenance action in a logbook.

Common Troubleshooting

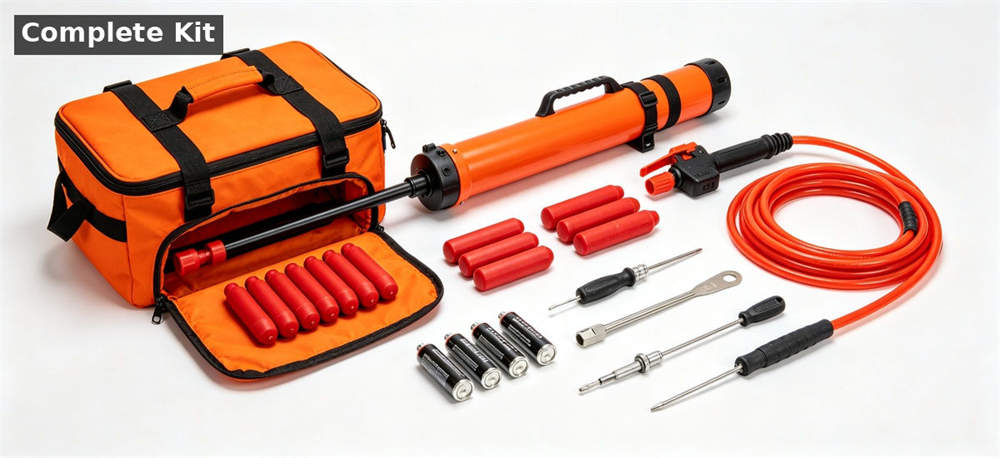

Complete Kit Checklist

When ordering a pneumatic or professional launcher, confirm the complete set includes all of the following. A launcher body alone is not a deployable rescue set.

✅ This 31m high-strength polypropylene rescue throw bag is practical emergency rescue equipment. Designed for flood control and water rescue in disaster relief missions, available for bulk procurement by rescue teams and emergency management departments.

Transport Considerations

Pneumatic and professional launchers contain pressure components that may be classified as dangerous goods for transport. Confirm the following before production:

• Cylinder status: Does the cylinder ship charged or empty? Empty cylinders have fewer transport restrictions. Charged cylinders require dangerous-goods documentation (UN1070 for oxygen, UN1072 for compressed air).
• Split shipment: Some destinations require the cylinder to ship separately from the launcher body. Confirm whether your destination allows combined shipment.

• Destination regulations: Different countries have different rules for importing pressure equipment. Provide your destination country and transport method early so the correct documentation can be prepared.
• Manual throw bags: No pressure components, no special transport requirements.

Important: Provide the destination, transport method and pressure-component information at the quotation stage so the applicable documents and shipment plan can be confirmed. Do not assume a standard shipping method works for all destinations.

Rescue Line Thrower FAQ

What is the typical range of a rescue line thrower?

Manual throw bags reach 20–30m. Pneumatic launchers reach 80–120m on water and 100–180m on land. Professional launchers reach 100–150m on water and 150–230m on land. These are tested at 45° angle in no-wind conditions. Real-world range is reduced by wind, current and operator experience. Always add a 20% safety margin when selecting based on range.

What is the difference between a line thrower and a line launcher?

In practice the terms are often used interchangeably. "Line thrower" is the more common term in rescue and fire service, covering both manual and powered devices. "Line launcher" typically refers to powered (pneumatic or cartridge) devices. Both describe equipment that fires a projectile trailing a rescue rope across water or a gap.

Can I use a pneumatic launcher without operator training?

No. Pneumatic launchers use pressurised components and fire projectiles at high speed. Untrained operation can cause injury, property damage or equipment failure. Most professional models require certified operator training. Include training in your procurement plan if your team does not already have certified operators. Manual throw bags can be used with basic instruction.

What rope material is best for water rescue?

Polypropylene and polyethylene are the most common because they float. High-strength polyethylene (HMPE) offers higher strength-to-weight ratio but may sink unless treated. Nylon is strong but absorbs water and sinks — not recommended for water rescue line throwers. Always confirm the rope is specified as floating for water rescue use.

How does rope diameter affect range and strength?

6mm rope gives the longest range (lowest air drag) but minimum strength. 8mm is the balanced choice for most pneumatic launchers — good range plus enough strength for two-person rescue. 10mm has the highest strength but shortest range, for professional heavy-load use. Thicker rope creates 10–15% more air drag than thin rope at the same pressure.

How often should I replace the rope?

Inspect before each use for cuts, fraying, UV damage or shock loading. Replace immediately if more than 10% of strands are broken in any 10cm section, or if the rope has been under a shock load (person falling). As a general cycle, replace every 2–3 years even if unused, because UV and age weaken fibres. Floating ropes should be tested for buoyancy annually.

How often do O-rings and seals need replacing?

Every 50 launches or every 6 months, whichever comes first. O-rings degrade from pressure cycling, ozone and age. A degraded seal causes pressure loss, reduced range and can fail completely during operation. Always keep a spare seal kit on hand — they are inexpensive and a failed seal makes the launcher unusable.

Can pressure cylinders be refilled locally?

Compressed-air cylinders can be refilled at any facility with a high-pressure compressor (dive shops, fire departments, industrial gas suppliers). CO2 cartridges are typically replaced rather than refilled. Confirm the cylinder type before ordering — refillable cylinders have lower long-term cost, disposable cartridges are simpler for remote locations.

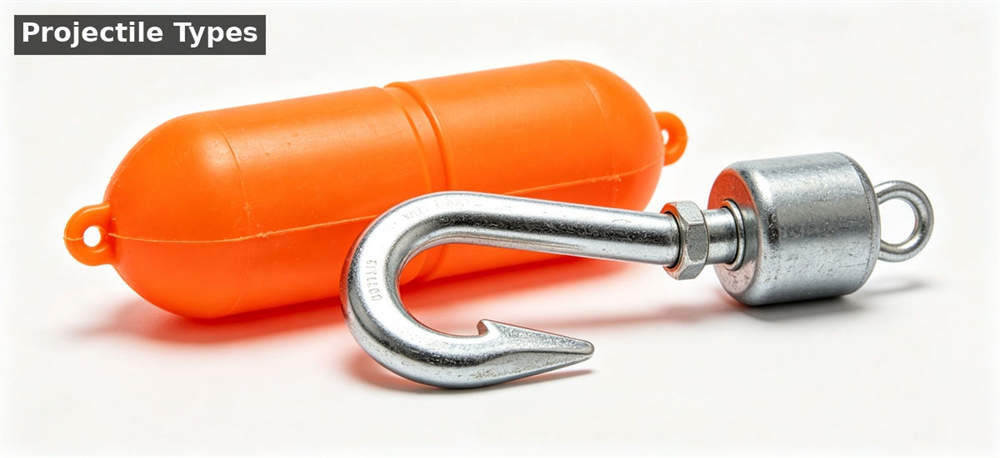

What is the difference between a rescue buoy and a grappling hook projectile?

A rescue buoy is a floating projectile designed for person-in-water rescues — it floats so the person can grab it and the line stays on the surface. A grappling hook is a weighted hook projectile for vessel-to-vessel line transfer, building access or securing to structures. Most launchers accept both types, and a complete kit should include at least one of each.

What wind speed is too high for accurate operation?

Above 30km/h (18mph), projectile accuracy becomes unreliable and range drops significantly. A 10km/h crosswind already reduces effective range by 15–25%. If you regularly operate in windy coastal or open-water locations, choose a model with a heavier projectile and practise wind compensation during training.

How long does it take to reload a pneumatic launcher?

1–2 minutes for a trained operator: retrieve projectile, inspect, repack rope, recharge cylinder if needed, reload projectile. Professional launchers may take 2–3 minutes due to larger components. Manual throw bags take 1–2 minutes to repack the rope carefully. Always factor reload time into your rescue plan — a single shot may not be enough.

Do line throwers require certification or standards?

Requirements vary by country and application. Pressure cylinders require periodic hydrostatic testing per local regulations. Some countries require CE marking for imported pressure equipment. For professional fire and coast guard use, confirm the specific standards your organisation requires. We can help arrange third-party test reports based on your project requirements.

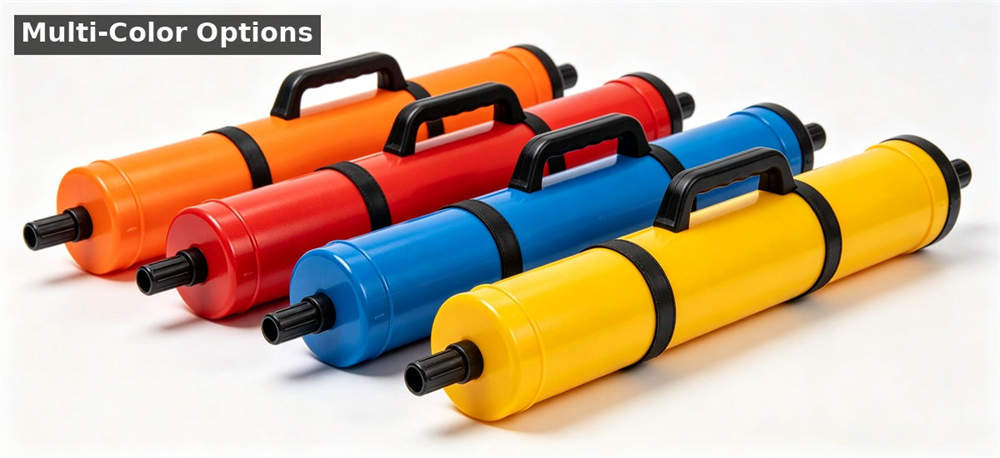

Can I customise the rope length and colour?

Yes. Rope length, diameter, colour and material can be customised for most models. Common lengths are 100m, 150m and 200m. High-visibility colours (orange, yellow) are recommended for water rescue. Custom configuration may affect lead time — confirm your requirements at quotation stage.

What should I check when receiving a shipment?

Open cartons from different positions in the container. Verify: launcher body matches ordered model, all kit items are present (use the checklist above), cylinder is undamaged and at correct pressure, rope is correct length and diameter, projectiles are undamaged, instruction manual is included, carrying case is functional. Record any defects with photos and carton numbers.

How should I store line throwers between seasons?

Store in a cool, dry place away from direct sunlight and heat. Pressure cylinders should be stored at moderate temperature (not above 50°C or below -20°C). Ropes should be clean and completely dry before storage. Launchers should be in their carrying cases. Inspect all units before each flood or rescue season — do not just count cartons, open and verify condition.

What is the service life of a launcher body?

With proper maintenance and seal replacement, a pneumatic launcher body typically lasts 8–12 years. Aluminium professional launchers can last 10–15 years. The cylinder has a separate service life set by pressure regulations (usually 10–15 years before mandatory retirement). Ropes and projectiles are consumables and need replacement every 2–3 years or after damage.

What is the minimum order quantity?

Manual throw bags have a low minimum quantity. Pneumatic and professional launchers typically have a higher minimum due to pressure component sourcing and configuration. Project kits are built to order. Exact minimums depend on the model, configuration and customisation — confirm at quotation stage.

Can I order spare parts separately?

Yes. O-rings, seals, ropes, projectiles, cylinders and carrying cases are all available as separate spare parts. Always order spares by the exact model number to ensure compatibility. We recommend stocking 1 seal kit and 1 spare rope per launcher to avoid downtime.

What is the typical lead time?

Standard manual throw bags: 7–15 working days. Standard pneumatic launchers: 15–25 working days. Professional launchers and custom project kits: 25–40 working days depending on configuration. Custom logo or colour adds 5–10 working days. Emergency rush orders for standard models can sometimes start production within 72 hours — confirm stock and capacity first.

Can one launcher use both land and water projectiles?

Most pneumatic and professional launchers accept multiple projectile types. The same launcher body can fire a rescue buoy (water), grappling hook (vessel/building) or standard weighted head (general line transfer). Confirm the projectile options for the specific model you are ordering — not all models accept all types.

What happens if a pressure cylinder fails inspection?

If a cylinder fails its periodic hydrostatic test or shows external damage (dents, corrosion, bulging), it must be removed from service immediately. Do not attempt to repair or use a failed cylinder. Replacement cylinders are available — order by exact model number. Failed cylinders should be disposed of according to local regulations for pressure equipment.

How do I start a procurement inquiry?

Send your task type, maximum rescue distance, launch position (shore/boat/bridge), operator training status, required projectile types, quantity, destination and any test or certification requirements. We will return matched model options, configuration details and the remaining quotation inputs.
